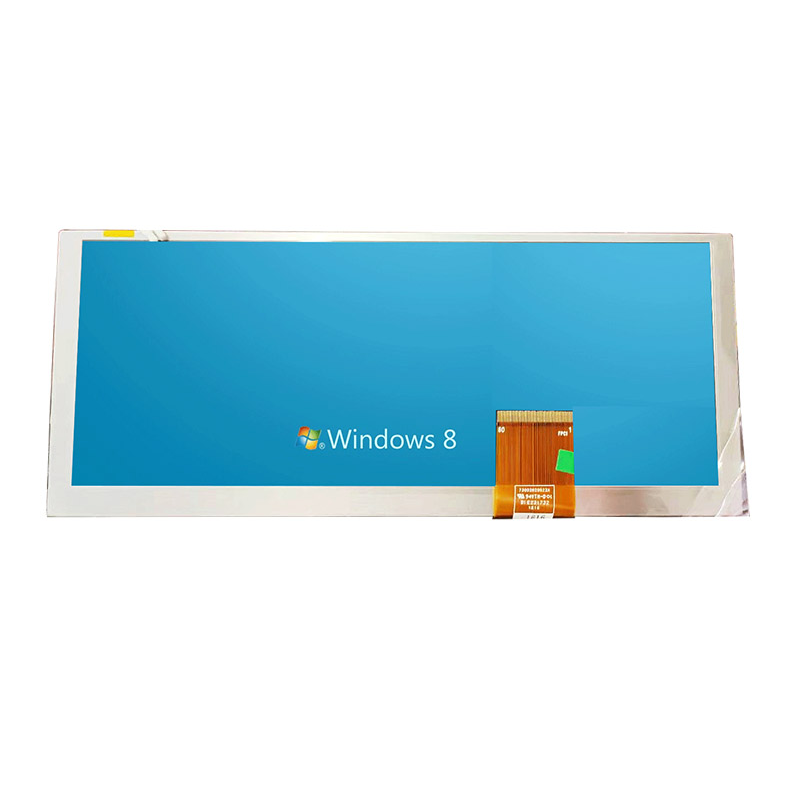

The 8.8-inch TFT display features a 1280×480 resolution IPS panel combined with a high-brightness LED backlight, achieving a luminance of 800 cd/m2. It offers wide viewing angles and excellent readability under strong light conditions. This product has been mass-produced in the instrument cluster systems of multiple new energy vehicle models, having passed rigorous automotive-grade validation including an operating temperature range of -30°C to 85°C, EMC, thermal shock, high-temperature/high-humidity, and vibration reliability tests. Equipped with a standard LVDS interface, it is compatible with mainstream automotive-grade SoC platforms and can be directly reused in new vehicle dashboard projects, significantly reducing hardware selection, software adaptation, and validation cycles, thereby enabling fast project implementation.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
? Trusted by Multinational Clients
We serve clients across 20+ countries including China, Germany, the USA, and Poland, having delivered 1,000+ customized TFT display solutions.
? Stringent Environmental Standards
All products comply with RoHS/REACH certifications.
? Precise Adaptation Capability
We offer a full-size range from 2.0" to 15.6", with resolutions selectable from 240×320 up to 1920×1080.
? Customization Services Available
We provide tailored solutions including:
1,Backlight brightness
2,Cover glass thickness and shape customization
3,Cover glass treatments: AR/AG/AF coating & tempering
4,OCA full lamination
5,TFT metal enclosures
6,Optional RTP/CTP (Resistive/Capacitive Touch Panel)
7,Optional IP65 protection rating
| Manufacturer | Eastern Display |
| Product model | EDT088LSANX-5 |
| Resolution | 1280*480 |
| Interface | LVDS |
| Driver chip | |
| Connection | FPC |
| Display type | 16.7M color TFT-LCD |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED?backlight |
| Backlight brightness | 800cd/m2 |
| Operating temperature | -30-85℃ |
| Storage temperature | -40-95℃ |
| Cover | customized services such as AF/AG/AR. |
| Lifetime | 50000H |
