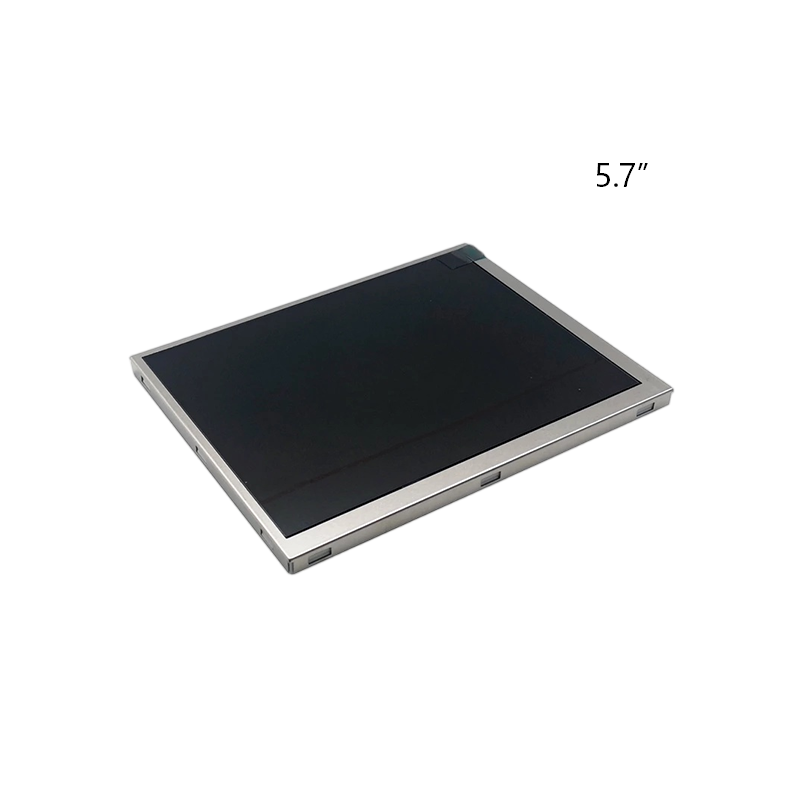

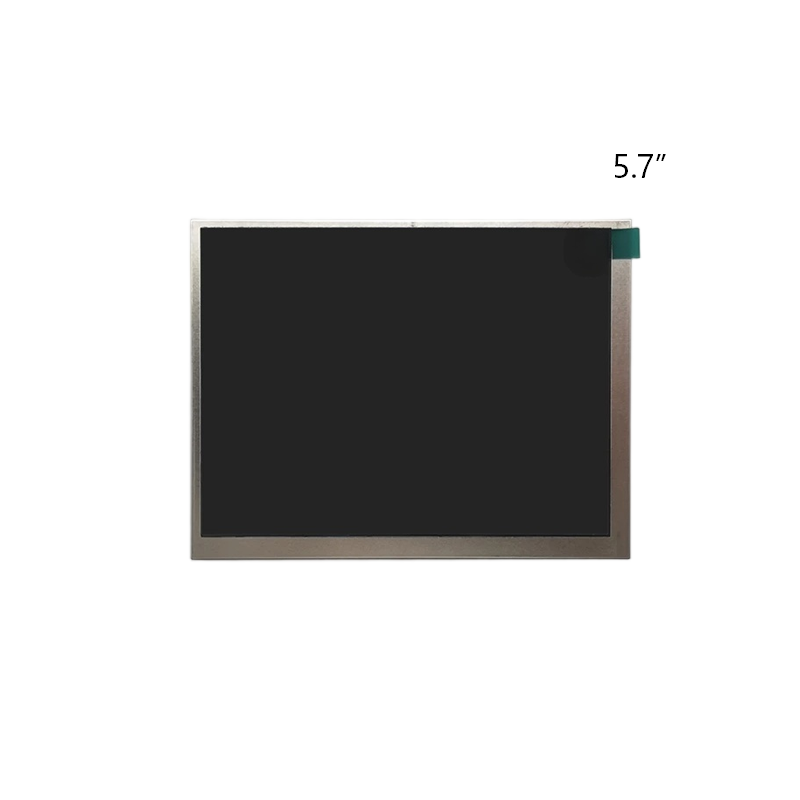

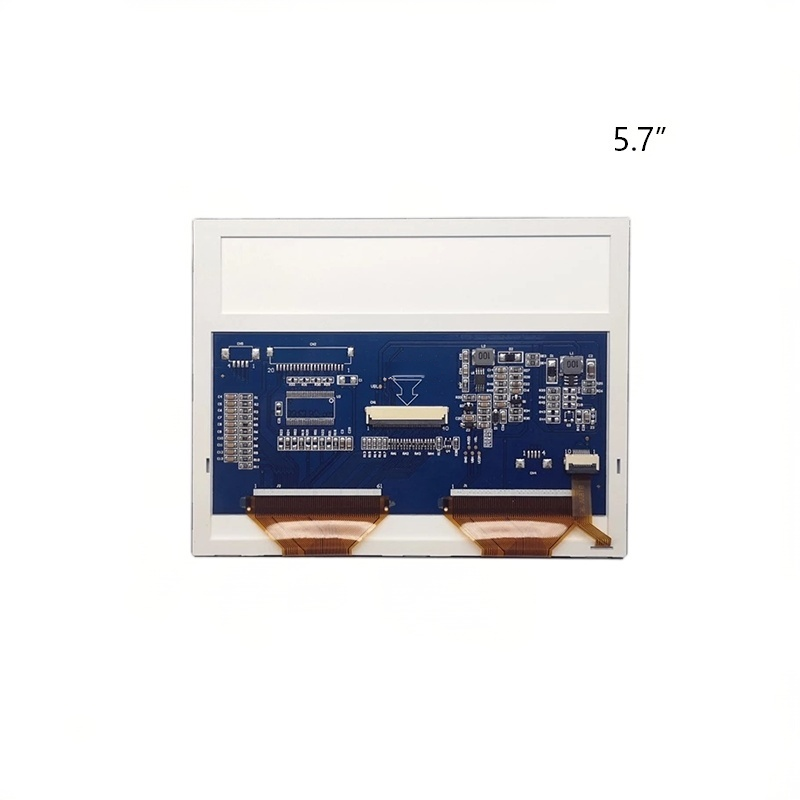

5.7-inch industrial-grade IPS TFT LCD display, standard with 640×480 high-definition resolution, equipped with high-brightness backlight configuration, ensuring clear visibility even in strong outdoor light environments. Adopting IPS wide-viewing angle technology, it delivers accurate colors and no distortion from any viewing angle. The whole unit features an ultra-wide operating temperature range of -20℃ to +70℃, with industrial-grade anti-interference and anti-vibration performance, making it stable and durable, suitable for complex working conditions. It comes standard with a universal standard interface, compatible with various industrial control motherboards, easy to integrate, low development cost, and strictly complies with ROHS environmental regulations. Besides smart meters, it can be widely used in industrial control, self-service terminals, charging piles, medical instruments, and outdoor smart devices, making it an ideal supporting solution for industrial and commercial displays.
EASTERN DISPLAY – Global Display Solutions Expert
? Precise Adaptability
Full size coverage from 0.96" to 15.6", with resolutions ranging from 80×160 to 1920×1200 optional. Our company offers 200+ standard products for selection.
? Customization Services Available:
We can provide the following customization services for customers:
1. Backlight brightness.
2. Cover glass thickness, shape, and material.
3. 3A (AF/AR/AG) surface treatment process.
4. OCA full lamination.
5. Integrated structural housing.
6. Customizable CTP.
? Trusted by Multinational Customers
Serving customers from 20+ countries including China, Germany, the United States, Poland, and Japan, providing 5000+ custom TFT display solutions.
? Strict Environmental Standards
Full product range certified with ROHS/REACH.

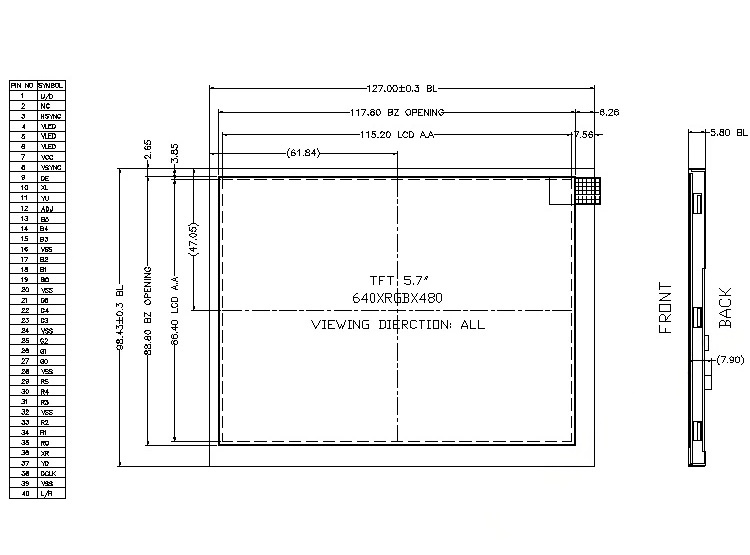

| Manufacturer | Eastern Display |
| Product model | EDT057LSIND-01 |
| Resolution | 640*480 |
| Interface | RGB666 |
| Driver chip | JD9168S |
| Connection | FPC |
| Display type | IPS TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 650cd/m2 |
| Operating temperature | -20-70℃ |
| Storage temperature | -30-80℃ |
| Lifetime | 50000H |
