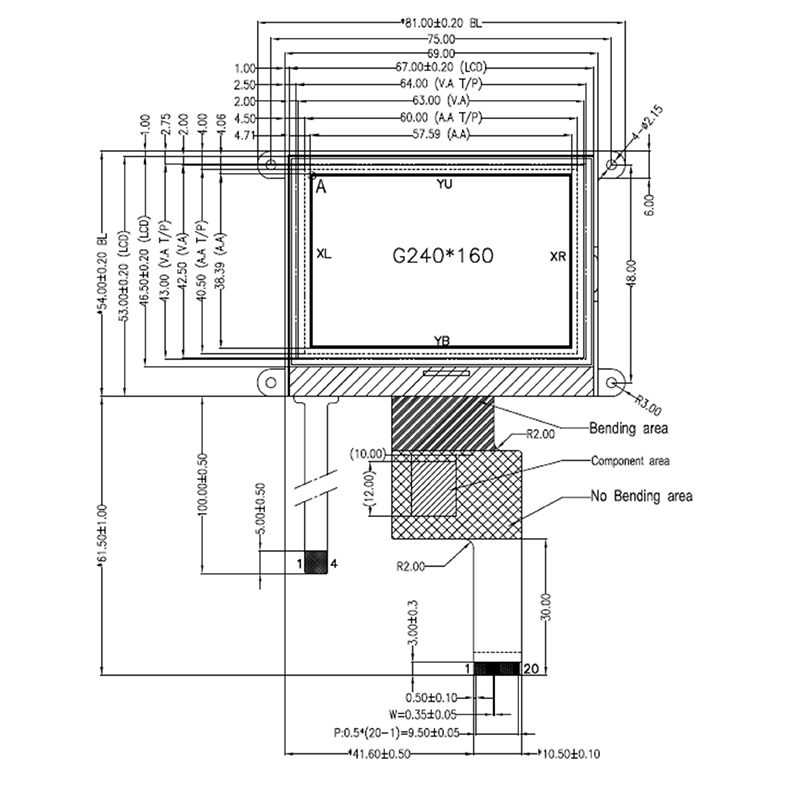

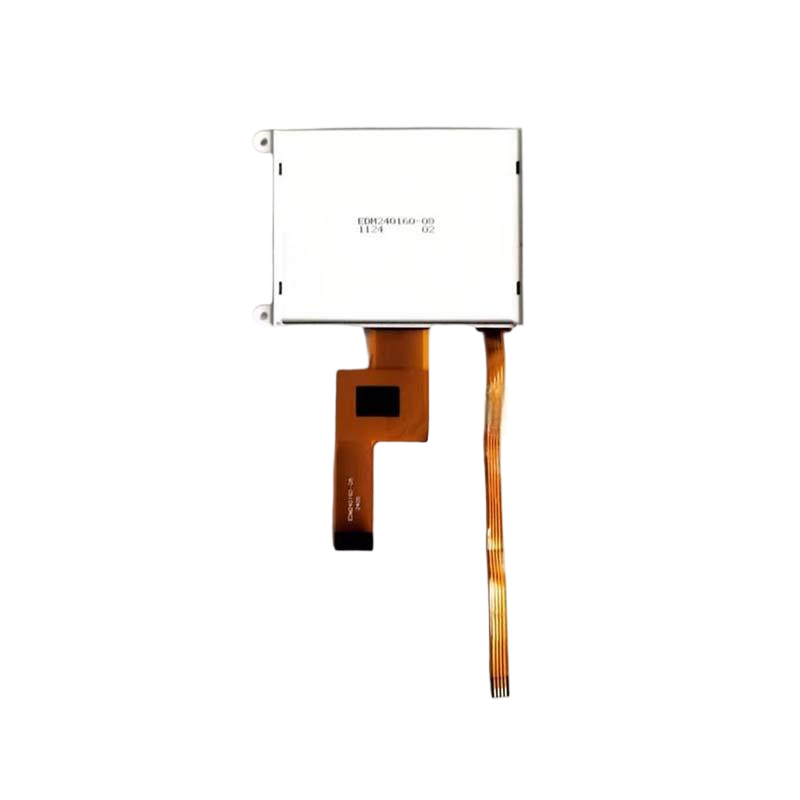

This product is a 240160 LCD dot matrix display capable of displaying graphics of 240 columns × 160 rows of pixels. The display adopts an FSTN mode LED backlit LCD, showing blue-black characters on a gray background, with high contrast and a wide viewing angle. The module includes a built-in driver chip and uses COG manufacturing technology, resulting in a thin, lightweight product with low power consumption. It connects to the host MCU via SPI interface / I2C interface / Parallel LCD interface, and is used to display various images and text. The product comes with a resistive LCD touch screen.
This product is a 240160 LCD dot matrix display capable of displaying graphics of 240 columns × 160 rows of pixels. The display adopts an FSTN mode LED backlit LCD, showing blue-black characters on a gray background, with high contrast and a wide viewing angle. The module includes a built-in driver chip and uses COG manufacturing technology, resulting in a thin, lightweight product with low power consumption. It connects to the host MCU via SPI interface / I2C interface / Parallel LCD interface, and is used to display various images and text. The product comes with a resistive LCD touch screen.
For this type of graphic dot matrix display LCM, options include resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240. Customers can choose different combinations of LCD backlight and LCD panel according to product requirements, and customization is also available.
| Manufacturer | Eastern?Display |
| Product model | EDM240160-08TP |
| Display content | 240x160 dot matrix display |
| Background | Gray |
| Interface | SPI/I2C/Parallel LCD interface |
| Driver chip model | LCD?controller??UC1611S |
| Module type | COG LCD?Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 2.8V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -25~80℃ |
| Storage temperature | -40~90℃ |
