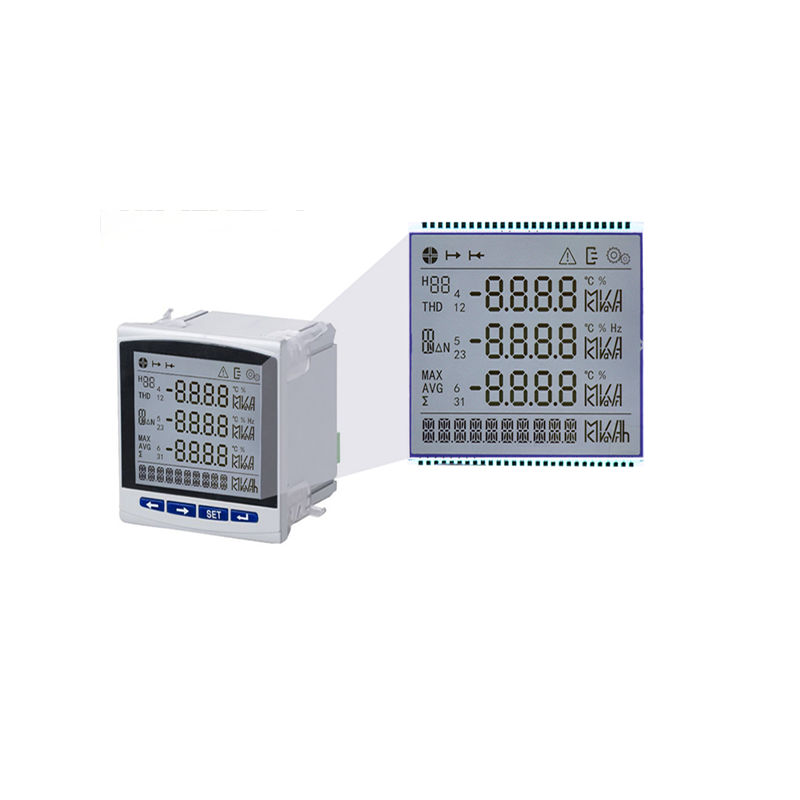

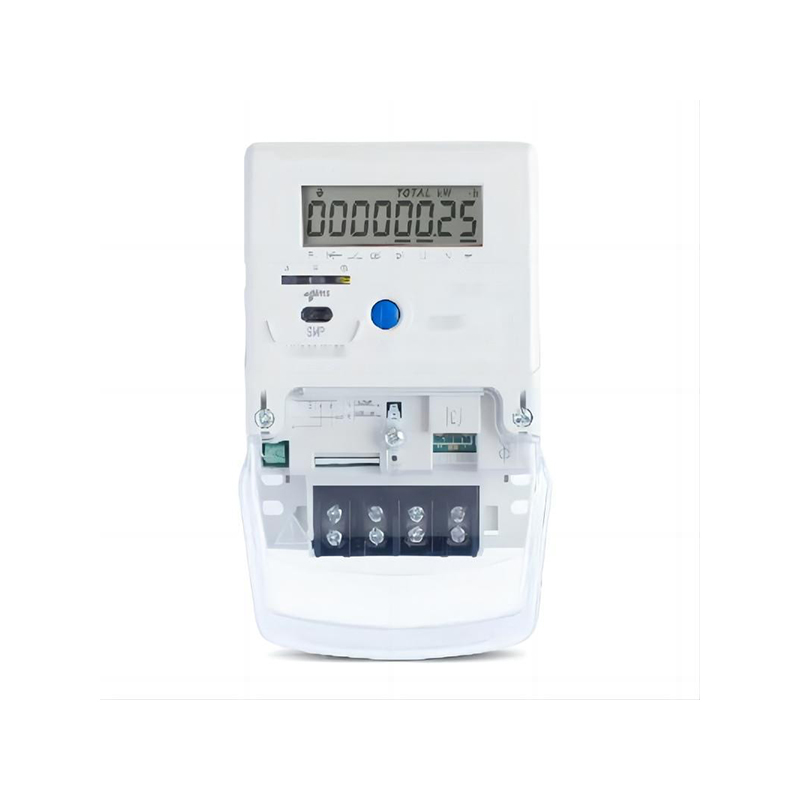

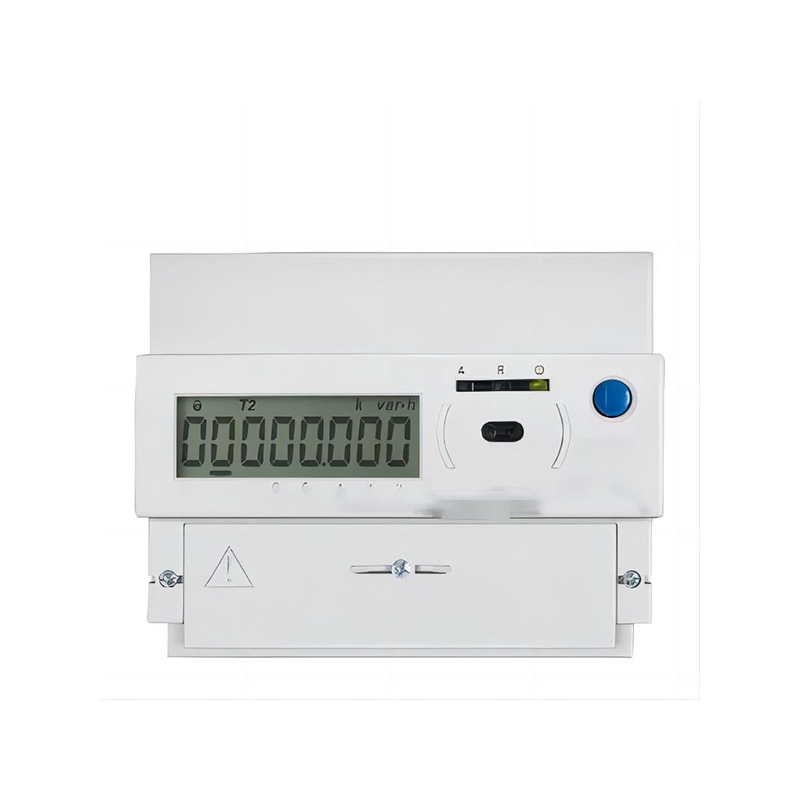

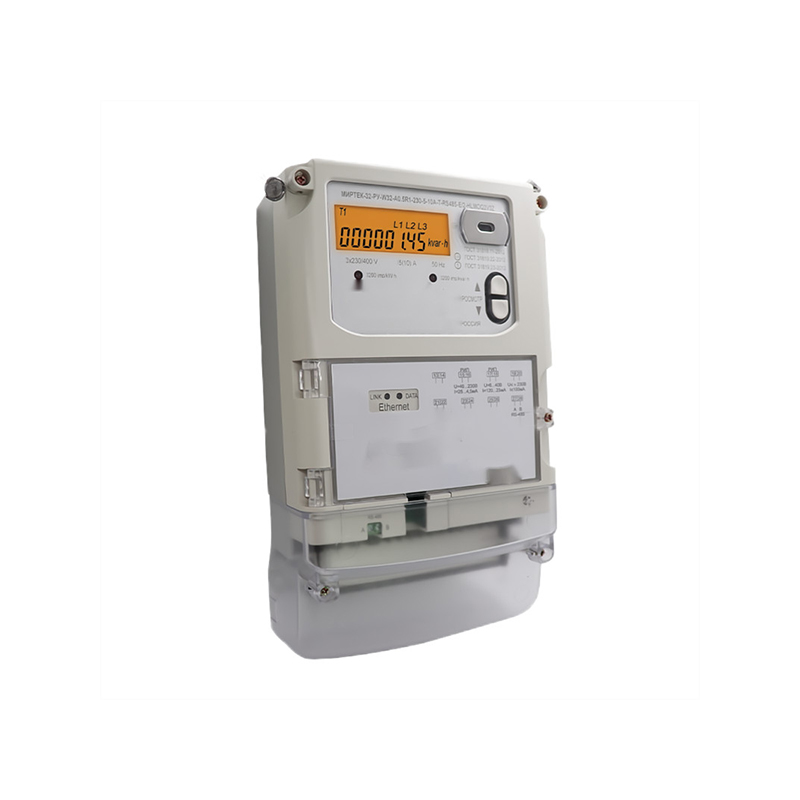

As a key display component in smart electricity meters, the LCD is a high-performance, multi-level display solution. It is widely used in devices such as single-phase remote fee-controlled smart meters, three-phase multifunctional meters, and bidirectional metering smart meters. This display product supports hierarchical information presentation at the user, data, and management levels. It not only allows end-users to intuitively access electricity consumption data but also enables maintenance personnel to conduct in-depth data queries and system management.
As the critical human-machine interface of the meter, the LCD serves not only as a window for information display but also as an important carrier reflecting the meter’s measurement accuracy, real-time communication data, and core functionalities. With its high contrast, wide viewing angle, and low power consumption, it ensures clear and stable content visibility under various lighting conditions. This contributes to a user experience where “information is clear to users and accessible for maintenance,” thereby significantly enhancing the practicality and reliability of smart electricity meters.
EASTERN DISPLAY supplies thousands of HTN LCD models to customers in North America, Europe, East Asia, and other regions. With an annual supply exceeding millions of units for electricity meter products, we have accumulated extensive technical expertise in product design, core parameters, and application support. EASTERN DISPLAY is committed to providing customers with high-quality and cost-effective HTN LCDs consistently and reliably.
| Manufacturer | Eastern?Display |
| Display mode | HTN ?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 90-120° |
| Connection | FPC/Pins |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100,000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Using temperature -40℃ |
