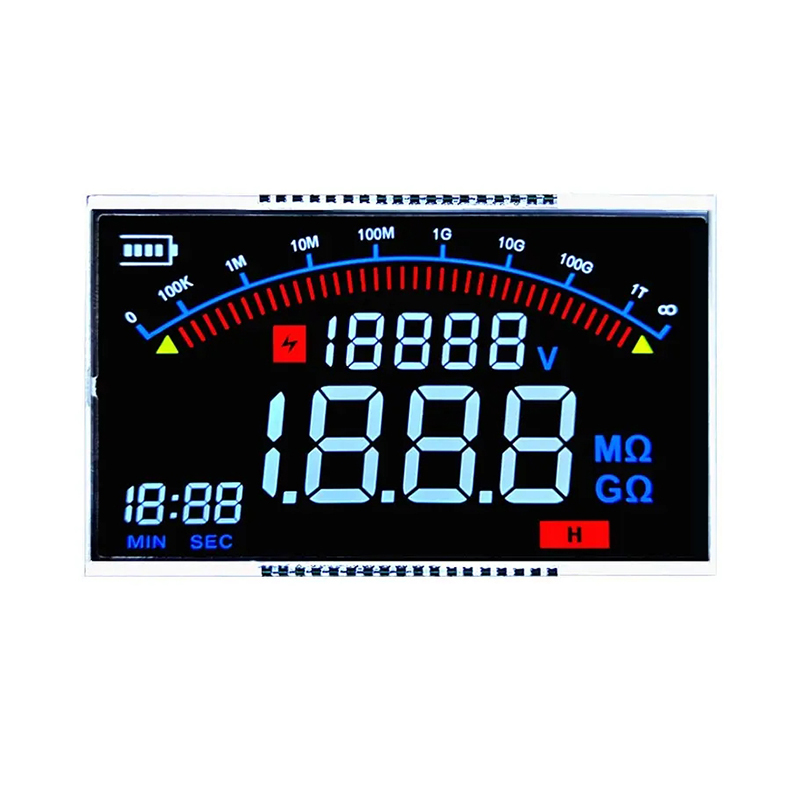

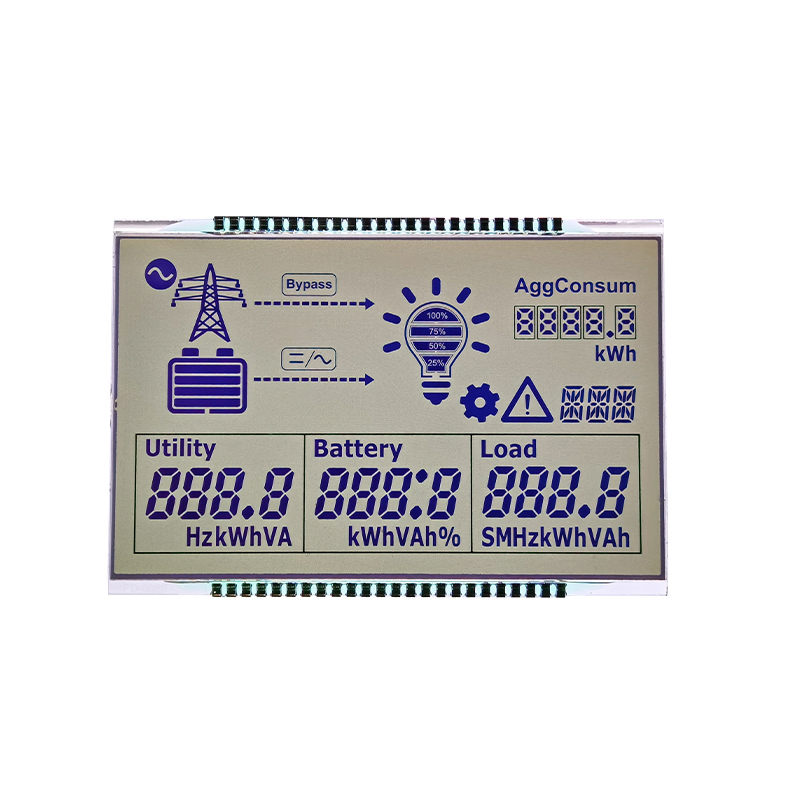

This is a Liquid Crystal Display (LCD) with high anti-static (ESD) performance. Electrostatic discharge can damage electronic devices, particularly affecting LCD display quality in dry environments. Anti-static LCDs minimize the impact of static electricity on the screen through specialized designs, materials, and manufacturing processes, ensuring device reliability and longevity.
High-grade anti-static LCDs offer excellent electrostatic discharge protection and belong to the category of high-performance LCDs. Typically, the ESD resistance level of LCDs is classified into three categories: A, B, and C.
Grade A: When subjected to a "12kV" contact discharge or "16kV" air discharge test on the bare screen, the test pattern shows no distortion. There might be slight flickering momentarily during the discharge. Some of our products can pass even higher-level ESD simulation tests.

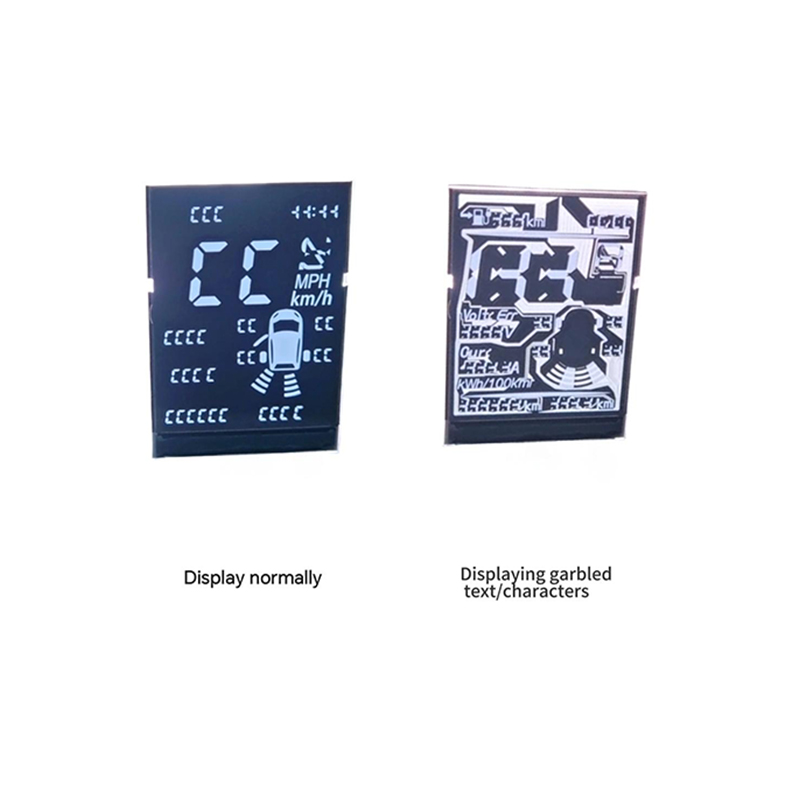

Grade B: When subjected to a "12kV" contact discharge or "16kV" air discharge test on the bare screen, the display may exhibit random patterns or go blank. The display typically recovers automatically after the electrostatic discharge is released.
Grade C: When subjected to a "10kV" contact discharge or "15kV" air discharge test on the bare screen, the display may show random patterns or go blank during testing, requiring a power cycle to restore normal function.
The high ESD resistance rating of LCD products is achieved through design, material selection, and process methods, resulting in a relatively higher production cost. The other performance characteristics of high-grade anti-static LCDs are identical to those of standard LCD screens, and they can reliably pass rigorous environmental testing. These products not only meet the parametric requirements for industrial, medical, automotive, and home appliance applications but also strictly comply with the RoHS 2.0 Directive restrictions on the use of hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE). The products are also compliant with REACH regulations.
| Manufacturer | Eastern Display |
| Display mode | VA /TN/HTN/STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 120-180° |
| Connection | PINS |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-85℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | High-level anti-static performance |
Key Words: VA/TN/HTN/STN LCD/Small LCD display/LCD glass/Segment LCD/Low cost LCD/Anti-interference LCD/Anti-static LCD
