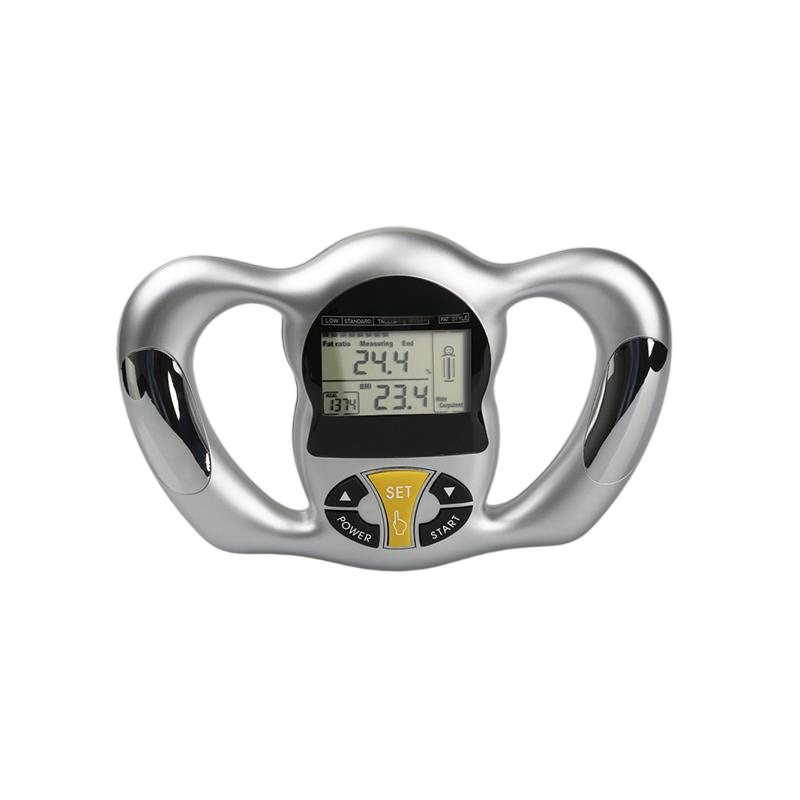

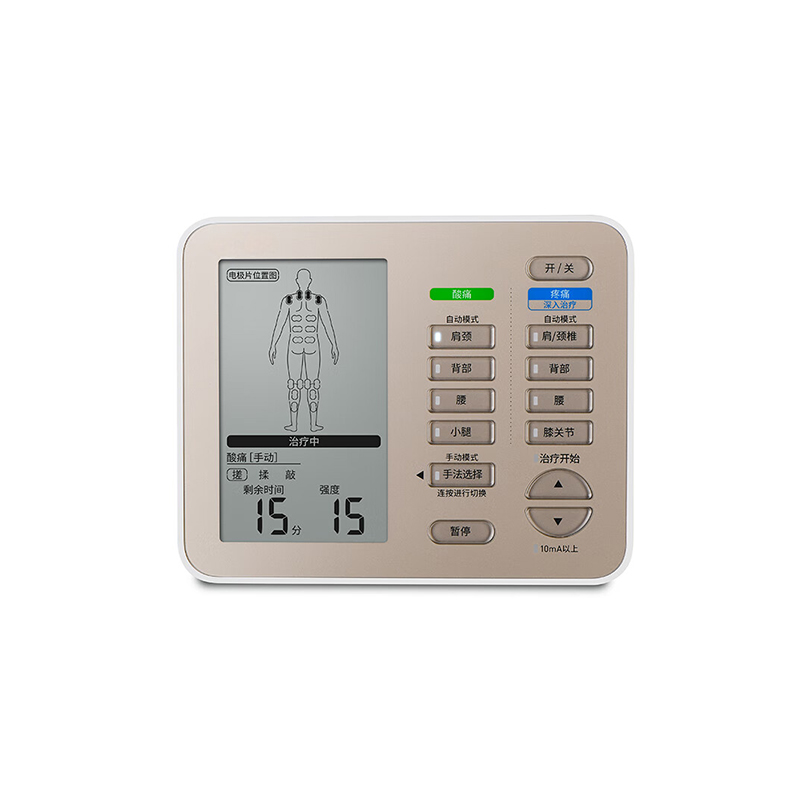

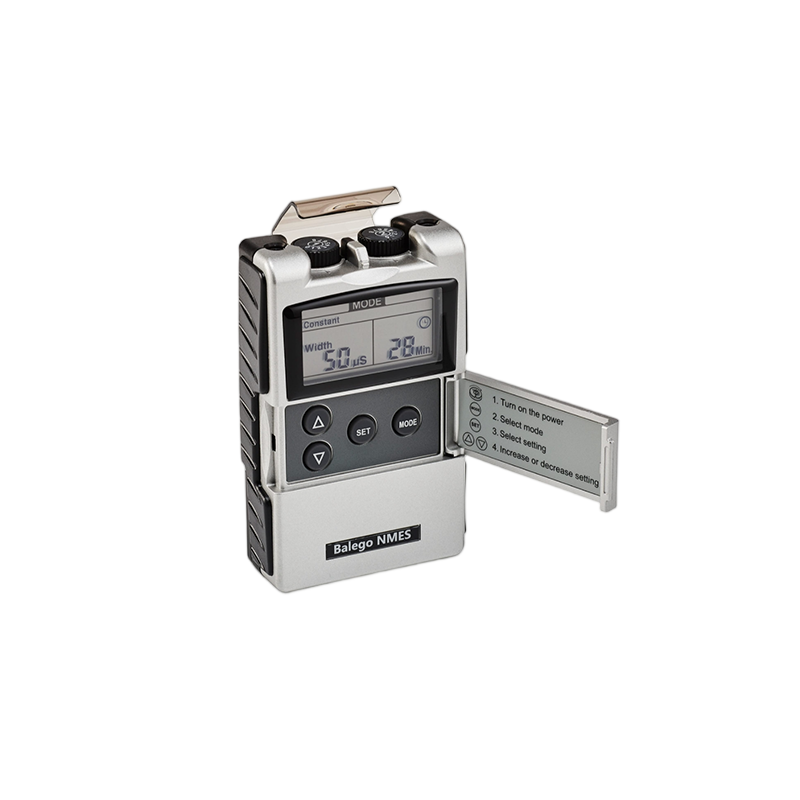

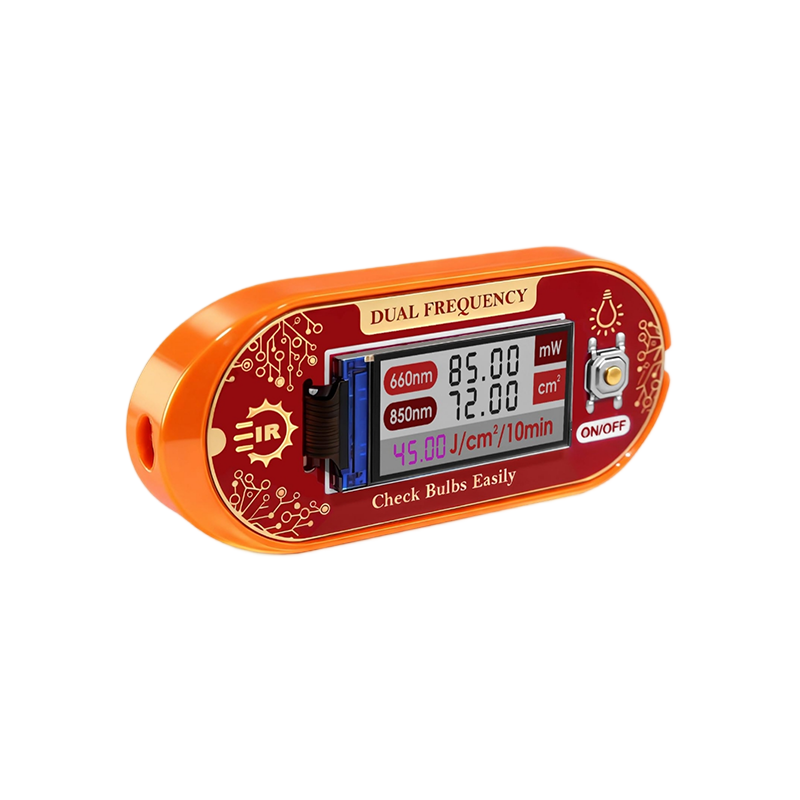

For medical spectrum therapy devices, the TN LCD display function serves as the core enabler of precise, safe, and intelligent treatment.
For medical spectrum therapy devices, the TN LCD display function serves as the core enabler of precise, safe, and intelligent treatment. It provides real-time, accurate presentation of key parameters such as treatment duration, output power, operating mode, and temperature, ensuring that physicians or users operate according to standard protocols. Additionally, by recording the cumulative operating time of the radiation plate, it prompts timely replacement of core components, thereby safeguarding therapeutic efficacy at the source. The segment LCD also dynamically monitors the device’s operating status, remaining treatment time, and safety information such as overheat protection, and displays error codes in the event of a malfunction—effectively preventing risks like burns and enhancing device safety. For high-end therapeutic devices with dual or multiple output channels, the LCD can simultaneously display independent parameters for each channel to meet complex clinical requirements, and it can record historical treatment data, providing an objective basis for efficacy evaluation and research traceability.
EASTERN DISPLAY has supplied thousands of TN LCD models to customers including Omron, Panasonic, and ISENS. Every year, we provide over 10 million units of TN LCDs for medical spectrum therapy devices. We have accumulated extensive technical experience in product design, core parameters, and application scenarios. EASTERN DISPLAY is able to continuously deliver high-cost-performance TN LCDs to our customers with stable supply.
| Manufacturer | Eastern?Display |
| Display mode | TN ?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V |
| Viewing angle range | 90-120° |
| Connection | PIN/FPC |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -10℃-60℃ |
| Storage temperature | -20℃-70℃ |
| Lifetime | 100,000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | High reliability |
