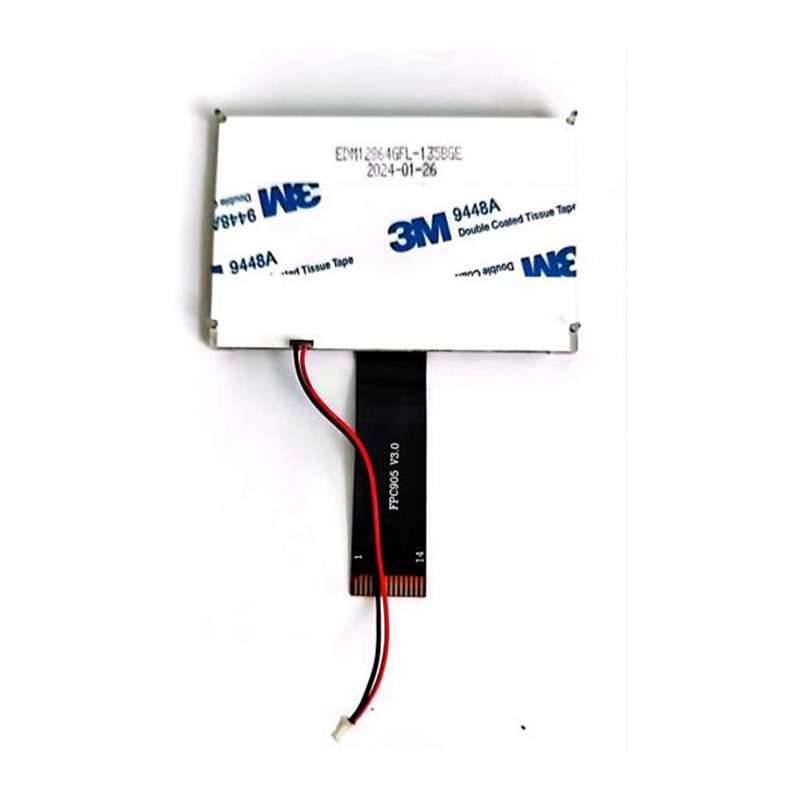

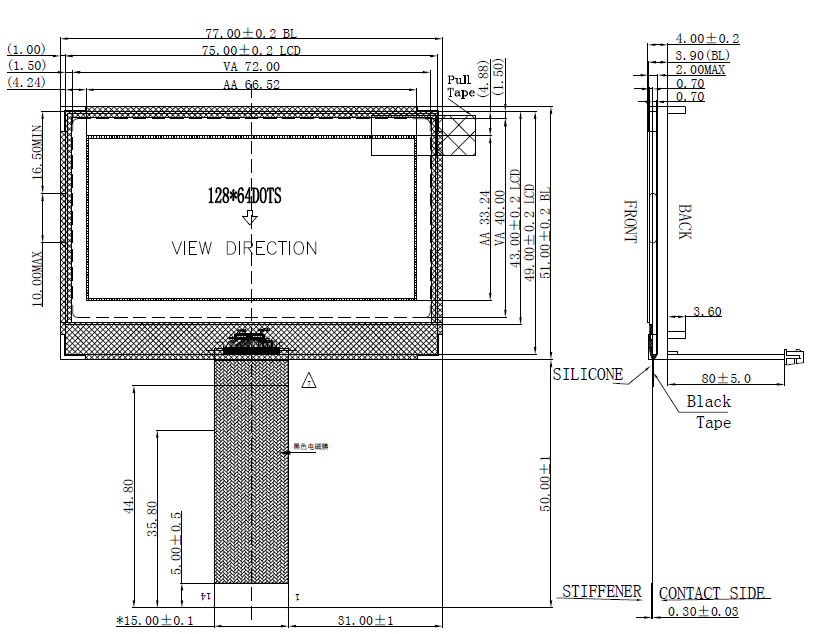

This product is a 12864 LCD dot matrix display, capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an FSTN mode LED backlit LCD, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design and low power consumption. It connects to the main control MCU via an SPI interface and is used for displaying various images and text.
This product is a 12864 LCD dot matrix display, capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an FSTN mode LED backlit LCD, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COG (Chip-on-Glass) technology, resulting in a slim, lightweight design and low power consumption. It connects to the main control MCU via an SPI interface and is used for displaying various images and text. Such graphic dot matrix displays are available in resolutions including 122x32, 128x64, 128x128, 144x32, 160x160, 160x32, 160x80, 192x64, 240x64, 240x128, 320x240, etc. Customers can select different combinations of LCD backlight and LCD panel types based on product requirements.
| Manufacturer | Eastern?Display |
| Product model | EDM12864-135 |
| Display content | 128x64 dot matrix display |
| Background | Gray |
| Interface | SPI interface |
| Driver chip model | LCD?controller???ST7565R |
| Module type | COG?LCD?Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 12 O'clock |
| Operating voltage | 3.3V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -20~70℃ |
| Storage temperature | -30-80℃ |
