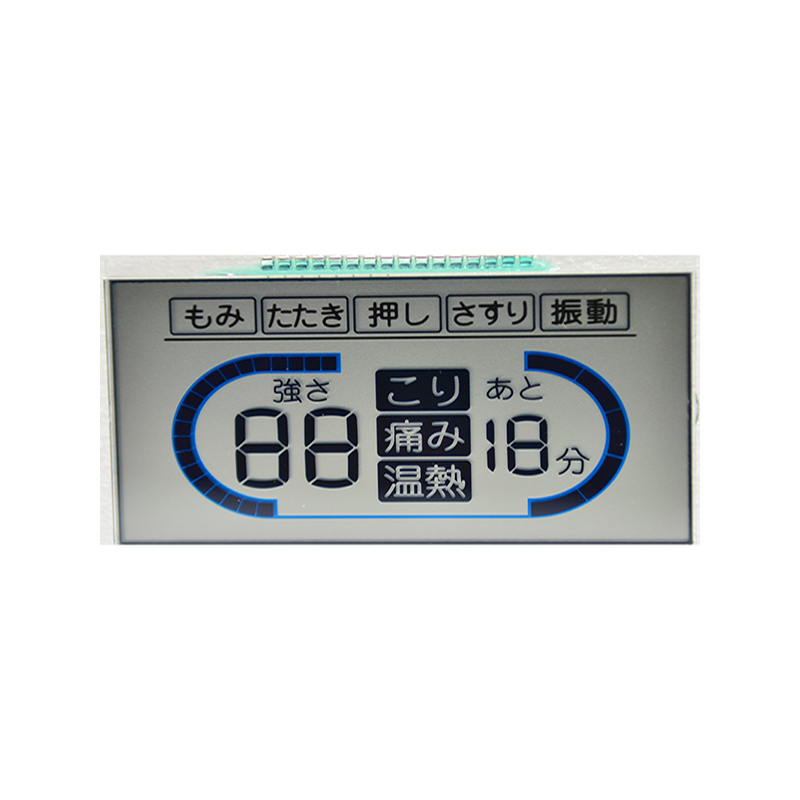

The HTN segment LCD is an upgraded product compared to the TN segment LCD. It offers a wider viewing angle than the TN LCD, with a maximum viewing angle of 150°, and supports 16-duty drive. This product features wide temperature adaptability, meeting the requirements of low-temperature environments as low as -40°C. Its operating voltage range is 3–5 V, making it suitable for low-power devices.

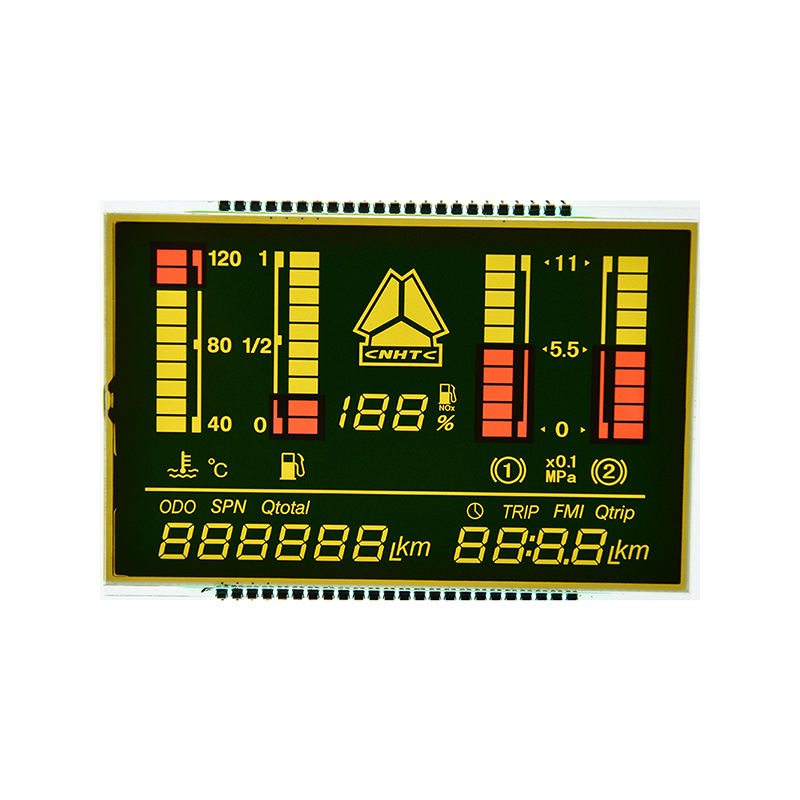

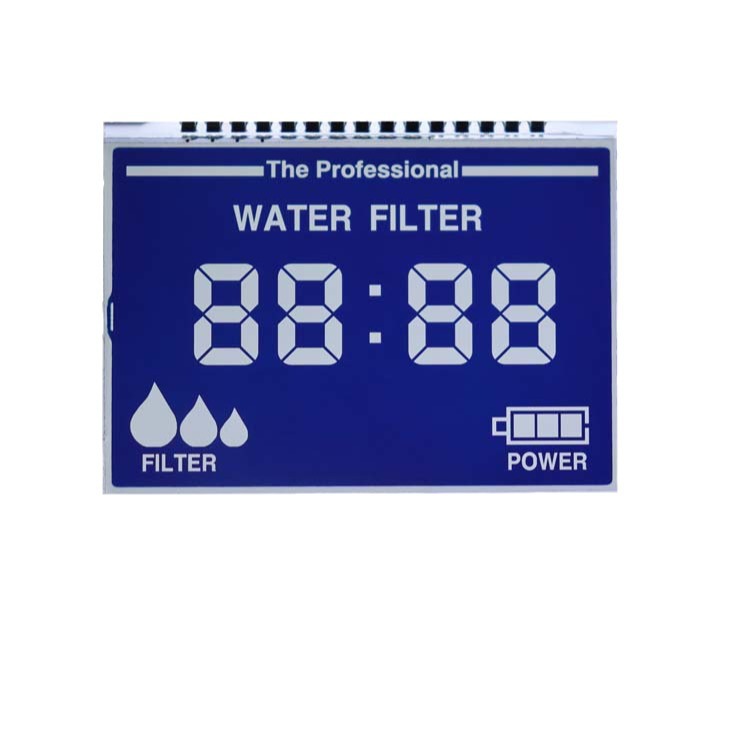

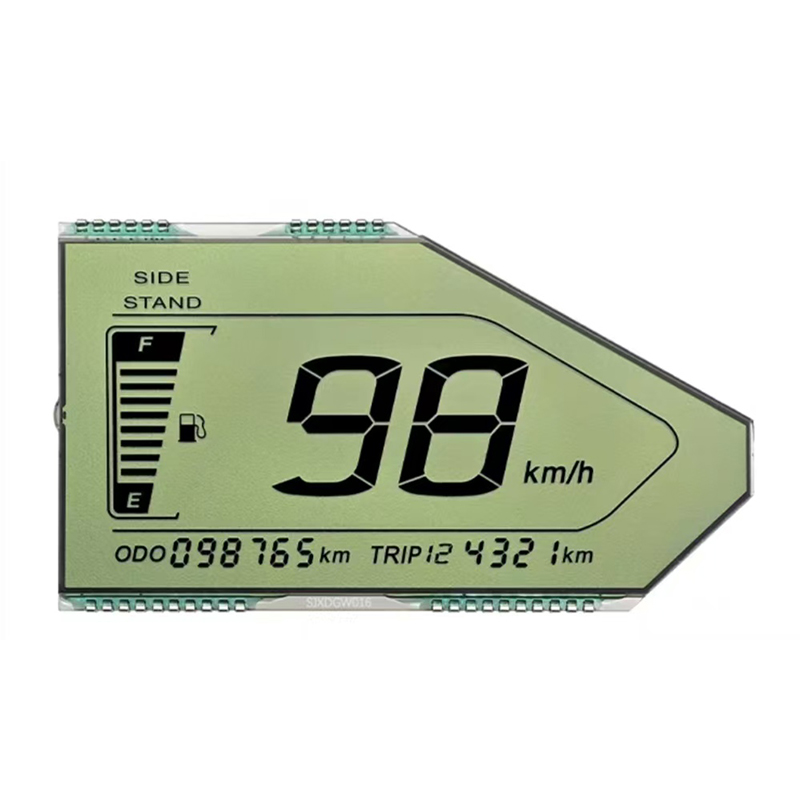

The HTN segment LCD features a wide viewing angle, low power consumption, and a wide temperature range, and supports 16-duty drive. This type of product is widely used in flow meters, fuel gauges, vehicle instrument panels, outdoor handheld devices, and other scenarios. It is also extensively applied in the medical field, including medical devices such as sphygmomanometers, thermometers, and blood glucose meters. Notably, more than half of the medical display products of Omron, a medical device giant, use HTN segment LCDs as their display components. The HTN supports two basic display modes: blue background with white characters and gray background with black characters. Eastern Display's custom product models range from EDC001 to EDC26080, totaling over ten thousand units. The entire product series complies with RoHS and REACH environmental requirements.
| Manufacturer | Eastern Display |
| Display mode | HTN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Driving channels | ≤16 |
| Viewing angle range | 100-150° |
| Connection | PINS/FPC |
| Driver chip model | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Cost-effective |
