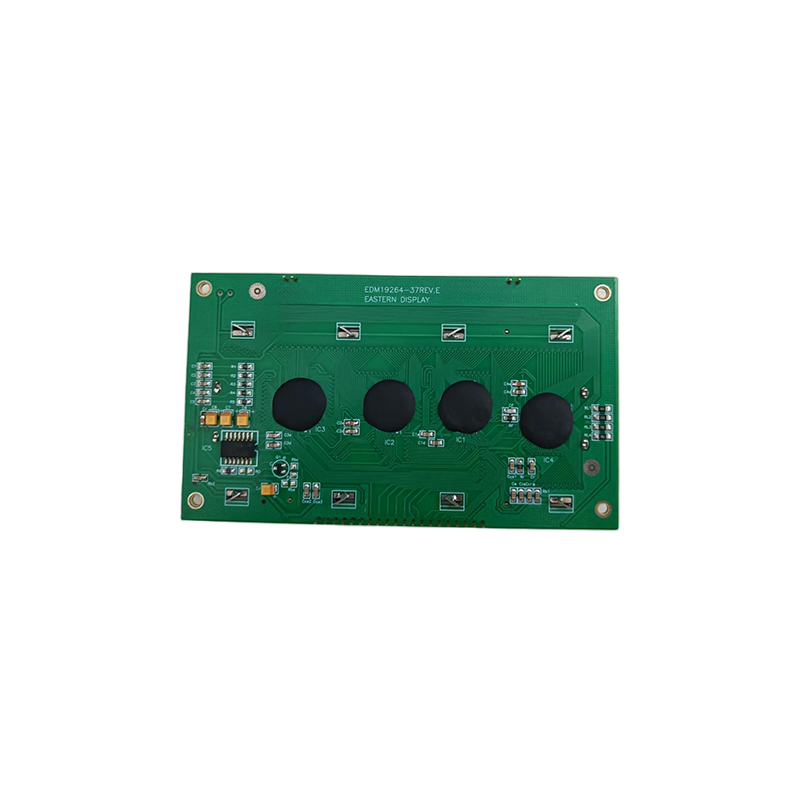

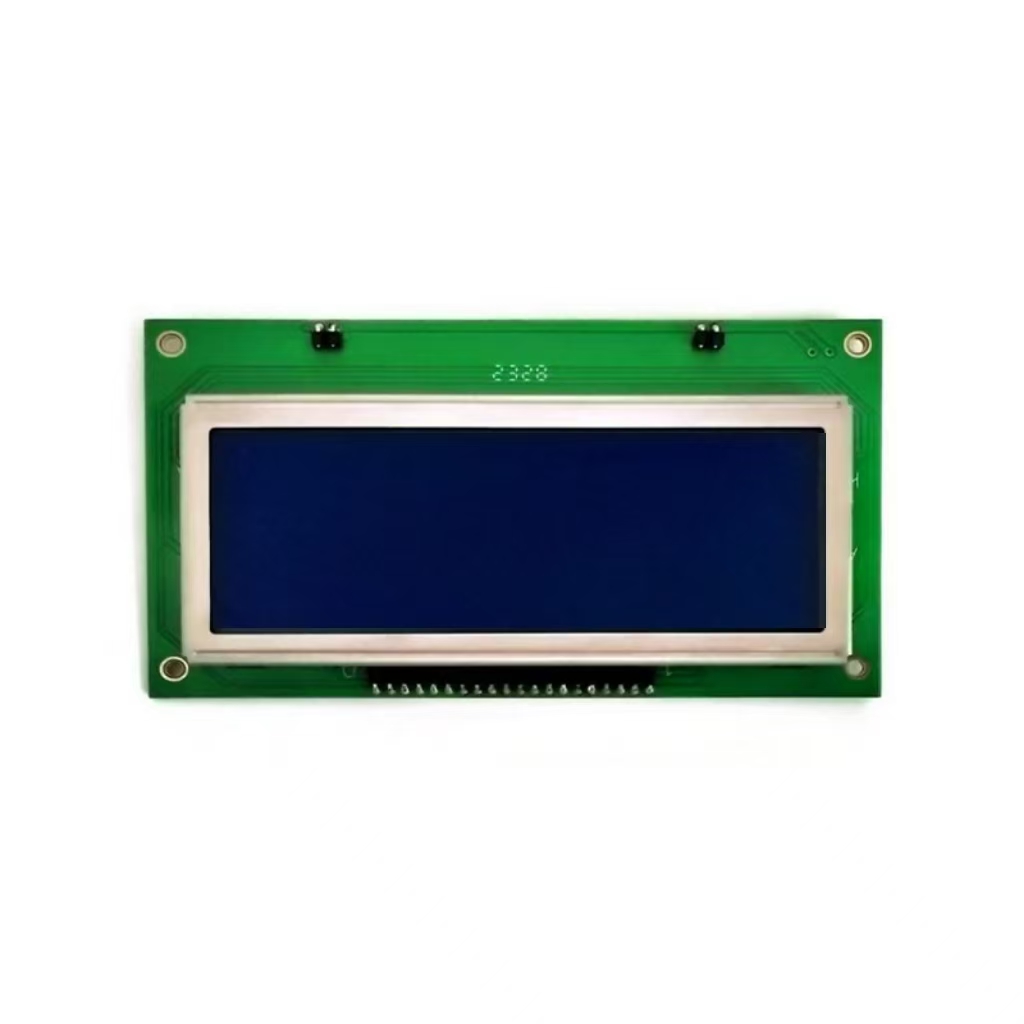

This product is a 19264 LCD dot matrix display capable of displaying graphics at a resolution of 192 columns × 64 rows of pixels. The display features an STN Negative Mode LED-backlit LCD, showing blue background with white characters, offering high contrast and a wide viewing angle. The module integrates a driver chip and adopts COB (Chip on Board) manufacturing process. It connects to the host MCU via an 8-bit parallel LCD interface and is used for displaying various images and text.
This product is a 19264 LCD dot matrix display capable of displaying graphics at a resolution of 192 columns × 64 rows of pixels. The display features an STN Negative Mode LED-backlit LCD, showing blue background with white characters, offering high contrast and a wide viewing angle. The module integrates a driver chip and adopts the COB (Chip on Board) manufacturing process. It connects to the host MCU via an 8-bit parallel LCD interface and is used for displaying various images and text.
For this type of graphic dot matrix display LCM, resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, and 320×240 are available. Customers can choose different combinations of LCD backlight and LCD panel types according to their product requirements, and customization is also available.
| Manufacturer | Eastern?Display |
| Product model | EDM19264-37 |

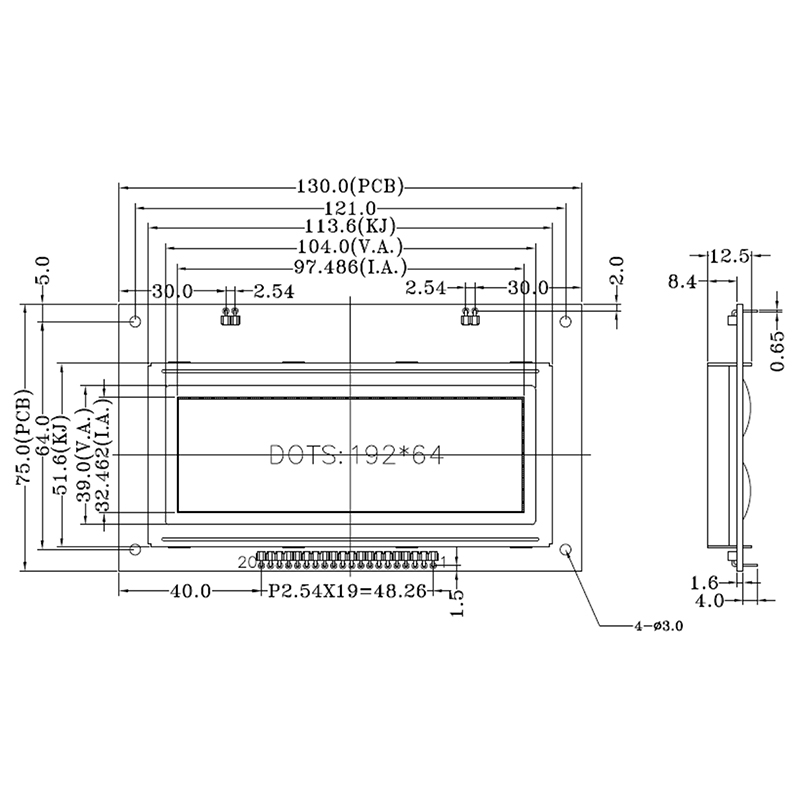

| Display content | 192x64 dot matrix display |
| Background | Blue |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD?controller??SBN0064 SBN6400 |
| Module type | COB?LCD?Module |
| Connection | Zebra |
| Display type | STN LCD，Negative，Transmissive |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -10~55℃ |
| Storage temperature | -20~60℃ |
