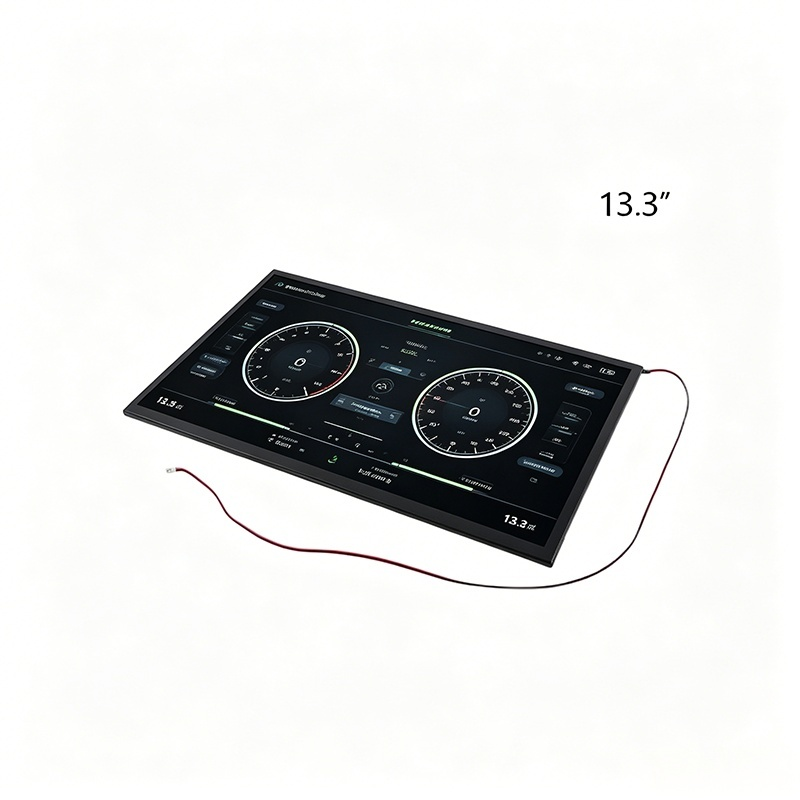

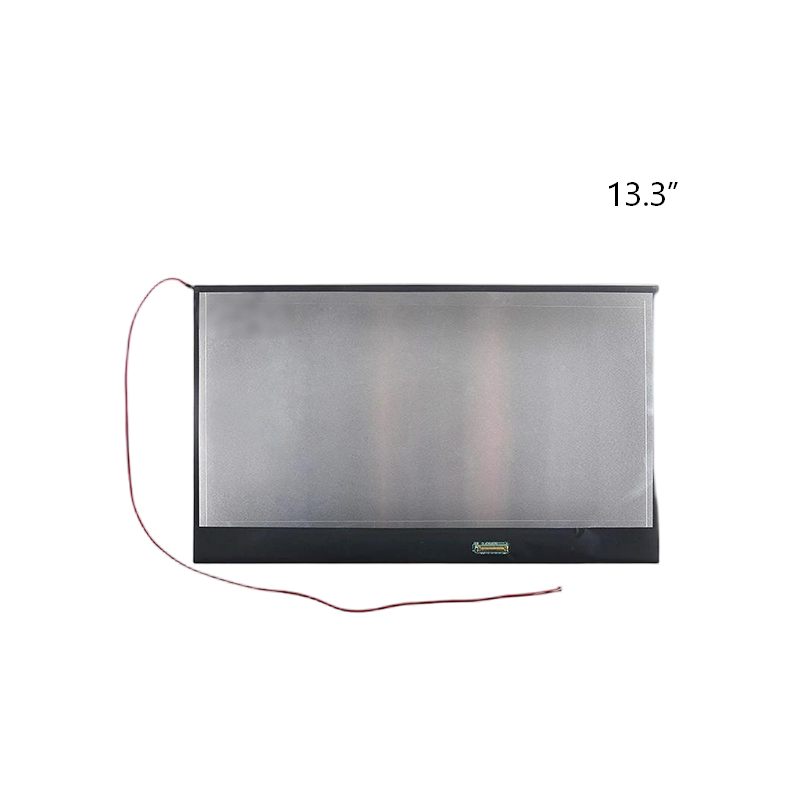

The 13.3 inch IPS TFT display features a 1920×1080 resolution, supports 16.7M true colors, delivering delicate images and realistic colors. With 400cd/m2 high brightness combined with IPS full viewing angle technology, it ensures clear image quality and consistent colors whether in bright indoor environments or when viewed from side angles. The module supports a wide operating temperature range of -20°C to +70°C, adapting to severe cold and hot environments with stable and reliable performance. Equipped with an embedded eDP digital interface, it provides stable transmission, strong anti-interference capability, and achieves lower power consumption and better energy efficiency. Widely applicable to industrial human-machine interfaces, medical instruments, intelligent security and other equipment, it is an ideal display solution that combines excellent image quality and reliable performance in industrial and commercial fields.
EASTERN DISPLAY ─ Global Display Solution Expert
? Precise adaptability
Full size coverage from 0.96" to 15.6" is available, with resolution options from 80×160 to 1920×1200. Our company offers 200+ standard products for selection.
? Customization services available:
We can provide the following customization services for customers:
1. Backlight brightness
2. Cover glass thickness, shape and material
3. 3A (AF/AR/AG) surface treatment process
4. OCA full lamination
5. Integrated structural housing
6. CTP customizable
? Trusted by multinational customers
Serving customers from more than 20 countries including China, Germany, USA, Poland and Japan, providing 5000+ custom TFT display solutions.
? Strict environmental standards
All products are RoHS/REACH certified.
| Manufacturer | Eastern Display |
| Product model | EDT133LSIND-01 |
| Resolution | 1920×1080 |
| Interface | eDP |
| Driver chip | / |
| Connection | FPC |
| Display type | 16.7M Color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| LCM?brightness | 400cd/m2 |
| Operating temperature | -20~+70 |
| Storage temperature | -30~+80 |
| Lifetime | 50000H |
Keywords：flexible lcd screen/lcd screen for pc case/7 inch lcd display/mini lcd display/round lcd/spi lcd/16 * 2 lcd display price/1602 lcd 3.3 v/1602 lcd arduino/ 1602 lcd display arduino/1602 lcd display/EDC21039DHC3P3/EDC22116SDC2P16/EDC20058VA?
This is a Liquid Crystal Display (LCD) with high anti-static (ESD) performance. Electrostatic discharge can damage electronic devices, particularly affecting LCD display quality in dry environments. Anti-static LCDs minimize the impact of static electricity on the screen through specialized designs, materials, and manufacturing processes, ensuring device reliability and longevity.
Product description: This product is an industrial-grade TFT display with a resolutio...
This product is a 12864 LCD dot matrix display capable of showing graphics of 128 columns × 64 rows of pixels. The display uses an STN mode LED-backlit LCD, featuring black characters on a yellow-green background, high contrast, and a wide viewing angle. The module includes a built-in driver chip and adopts COG (Chip-on-Glass) manufacturing technology, resulting in a thin, lightweight product with low power consumption and a wide operating temperature range. It connects to a host MCU via an SPI interface and is used to display various images and text. The product comes with a metal frame for easy mounting and fixing.

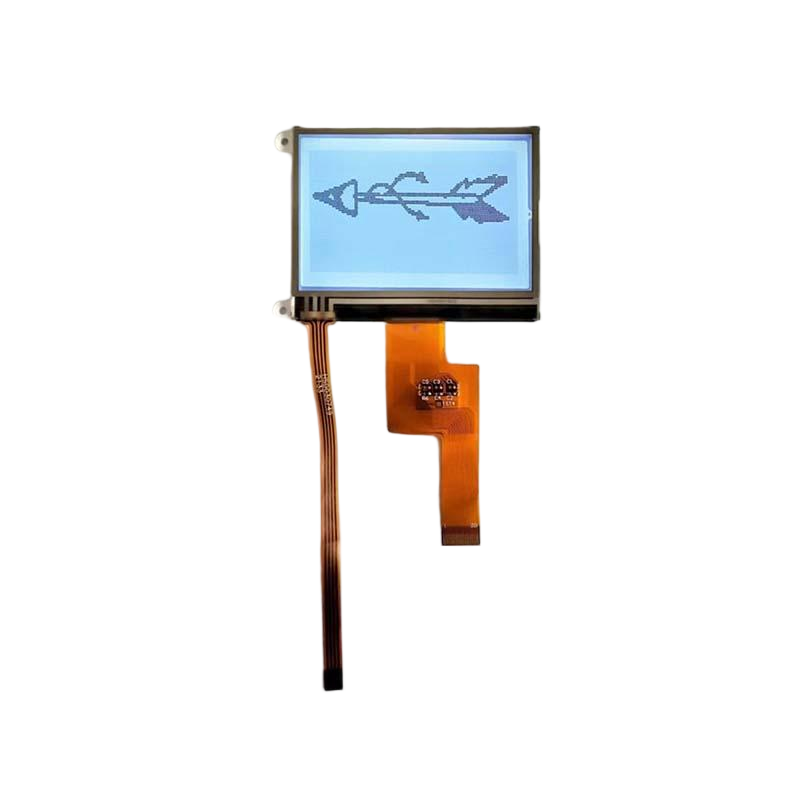

This product is a 240160 LCD dot matrix display that can display graphics with 240 columns x 160 rows of pixels. The display uses FSTN mode LED backlit LCD, which displays blue and black characters on a gray background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology. The product is light and thin with low power consumption. It is connected to the main control MCU through the I2C interface and is used to display various images and texts.
Anti-static LCD screens are essential for automotive, industrial control, and mobile applications where LCD displays must withstand complex and dynamic environments with stringent electrostatic requirements—significantly higher than those for consumer electronics. Specific anti-static standards include contact discharge resistance typically rated at ±4kV, ±6kV, or ±8kV, while air discharge resistance ranges from ±8kV, ±15kV, to ±25kV.
Segment LCDs are widely used in fishing equipment, serving as the human-machine interface (HMI) display for devices such as smart fishing reels, fish finders, remote controls for bait boats, fishing scales, and fishing tackle boxes. Segment LCDs feature low cost, low power consumption, and high reliability, making them highly suitable for displaying critical parameters like numbers and fixed symbols.
Product description: TN LCD is widely used in industrial instruments, industrial cont...
This product is a 12864 LCD dot matrix display capable of displaying graphics with 128 columns and 64 rows of pixels. The display features an STN yellow-green mode with LED backlit LCD, presenting black characters on a yellow-green background. It offers high contrast and a wide viewing angle. The module integrates a dedicated driver IC and utilizes COB production technology. It connects to the main control MCU via an 8-bit parallel LCD interface, enabling the display of various images and text. The built-in compensation circuit ensures excellent display performance even under wide-temperature operating conditions.
This product is a 5-inch TFT display specifically designed for automotive instrument clusters. It features an 800×480 resolution with an RGB interface and incorporates IPS technology, achieving a brightness of up to 1000 cd/m2 to ensure clear visibility even under strong light conditions. With an operating temperature range of -30°C to 85°C and excellent electromagnetic compatibility, it meets the stringent reliability and stability requirements of the automotive industry. This display is suitable for a wide range of pre-installed instrument systems in heavy-duty trucks, light trucks, buses, and new energy passenger vehicles.
This product is an LCD 16×2 character dot matrix display module, designed for displaying ASCII characters, with a total of 2 rows and 16 characters per row. The display adopts an STN blue negative display mode, equipped with white LED backlight LCD, presenting blue background with white characters, high contrast ratio, and wide viewing angle. The module incorporates a universal character driver chip, utilizes COB (Chip-On-Board) production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, making it convenient to use.
Data loggers are widely used in industrial control, environmental monitoring, medical equipment, vehicle systems and other fields for recording various physical quantities (e.g., temperature, pressure, flow, voltage, current, etc.) for a long time and in a stable manner. When choosing a display solution for them, segment code LCD is a very common and highly advantageous choice. This product is a customized segment code COG module, its display is TN LCD screen, using COG module process, integrated driver chip, LCD screen is reflective mode, connected to the main control MCU through the serial interface, the connection mode is PIN or FPC. this type of LCD module has a wide range of operating temperatures, thin and lightweight structure, simple to use, good display effect, stable performance and so on.

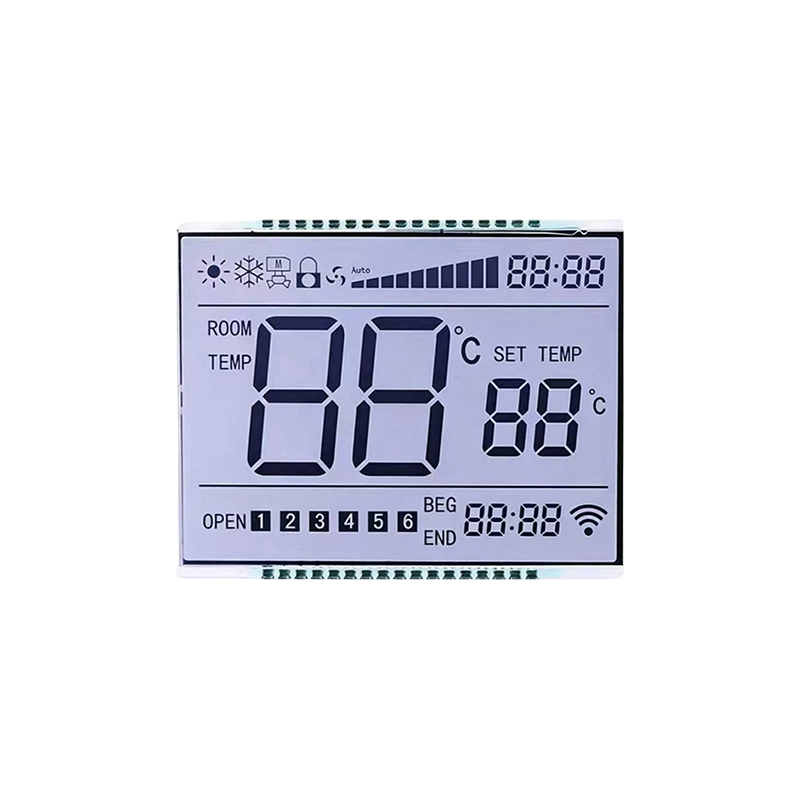

TN LCD offers significant advantages in temperature and humidity controllers, achieving clear character display at low cost with fast response to meet basic monitoring requirements. With an ultra-long lifespan of 100,000 hours, it satisfies the market’s high demand for durability. Its low power consumption and environmental compliance further reduce overall system cost, making it an ideal display solution that balances performance and budget.
